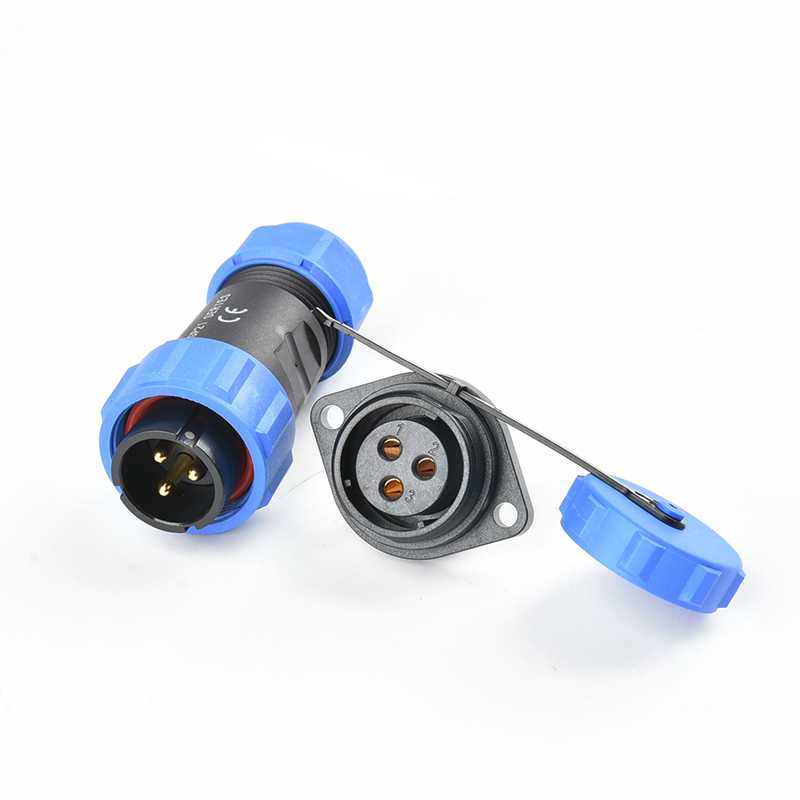

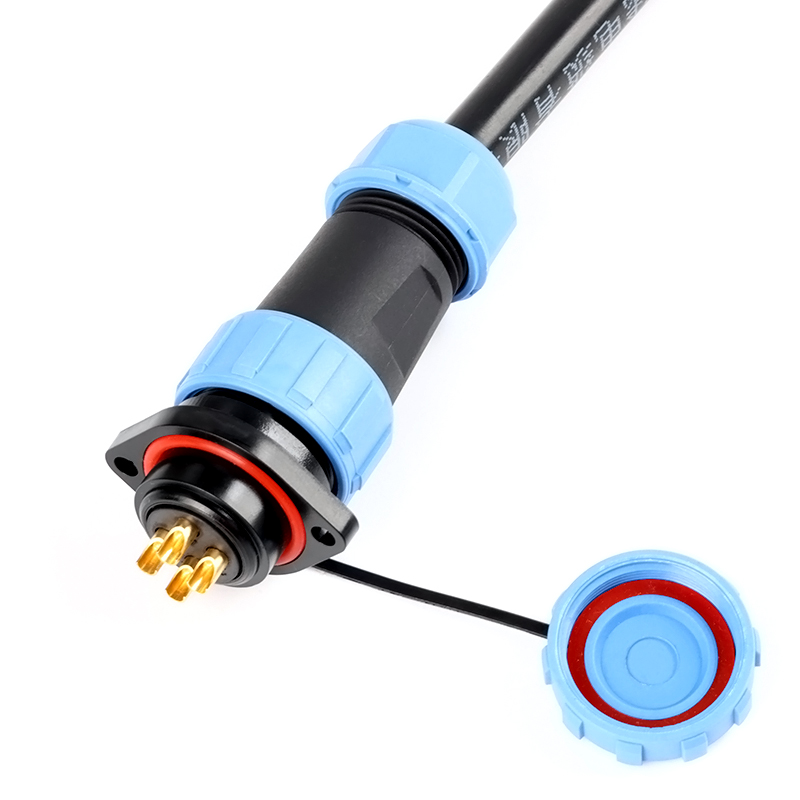

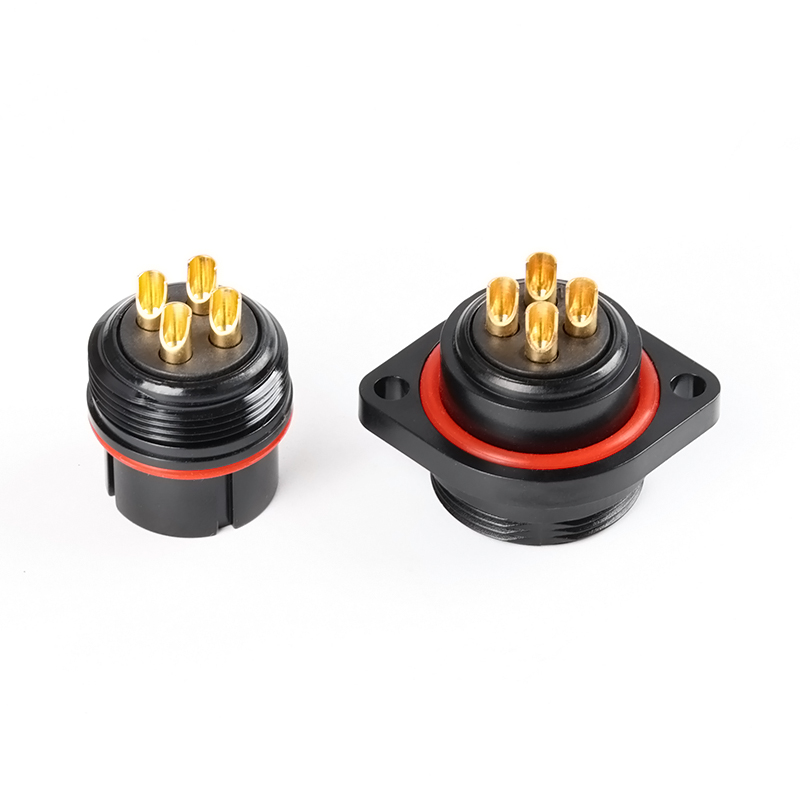

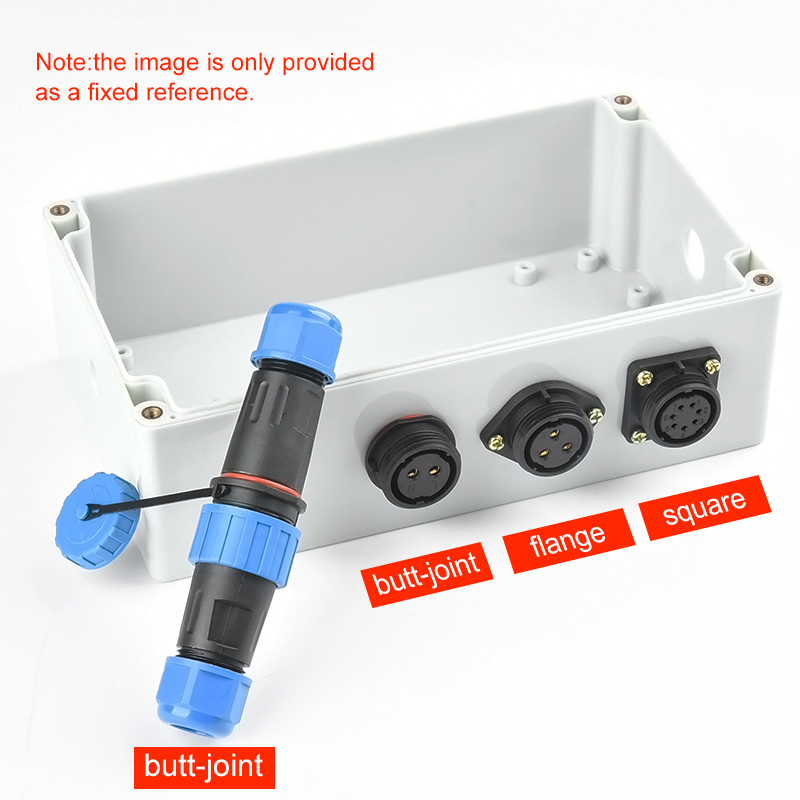

SP17-21 2pin-12 pin panel installation with 21mm waterproof circular wire connector, aviation cable connector (2-pin, male plug and socket flange seat)
Multiple core options available
HK$16.48HK$12.36
1.Model Selection
SP13/SP17/SP21/SP29 four models to choose from
2.Model details
Product Model | Number of product cores(pin) |
SP13 | 2/3/4/5/6/7/9 |
SP17 | 2/3/4/5/7/9/10 |
SP21 | 2/3/4/5/5B/5C/6/6B/7/8/9/12/15 |
SP29 | 2/3/4/7/8/8B/9/10/10B/12/16/17/20/24/26/35 |
The main difference between the 4 specifications is the size of the sealing wire, and the corresponding product can be selected according to the wire specifications.

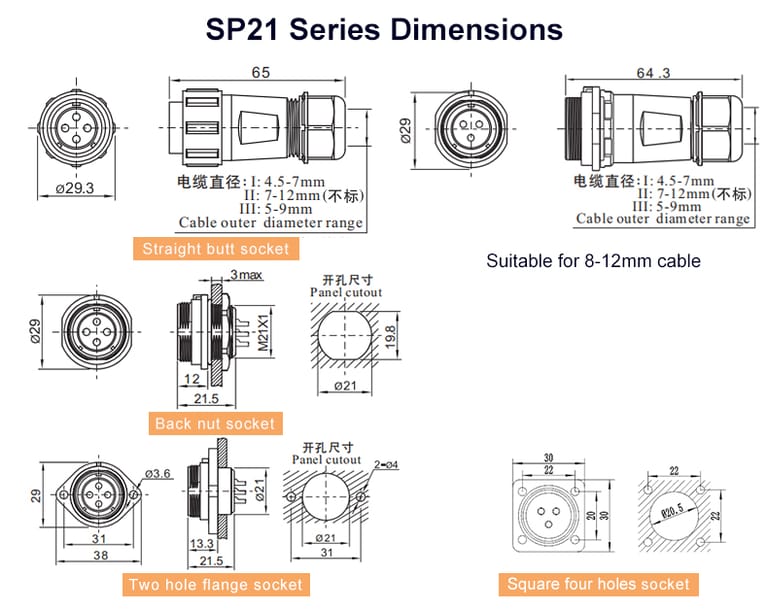

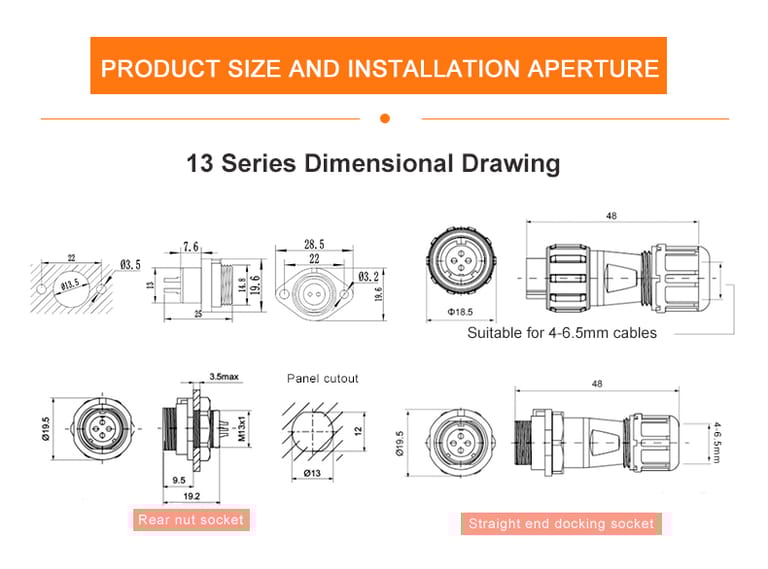

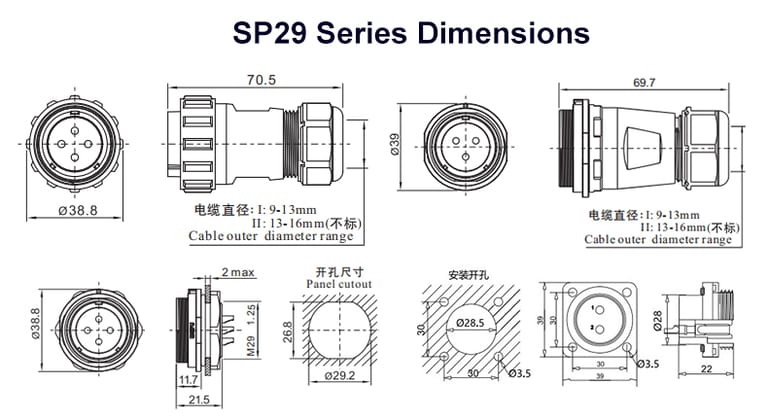

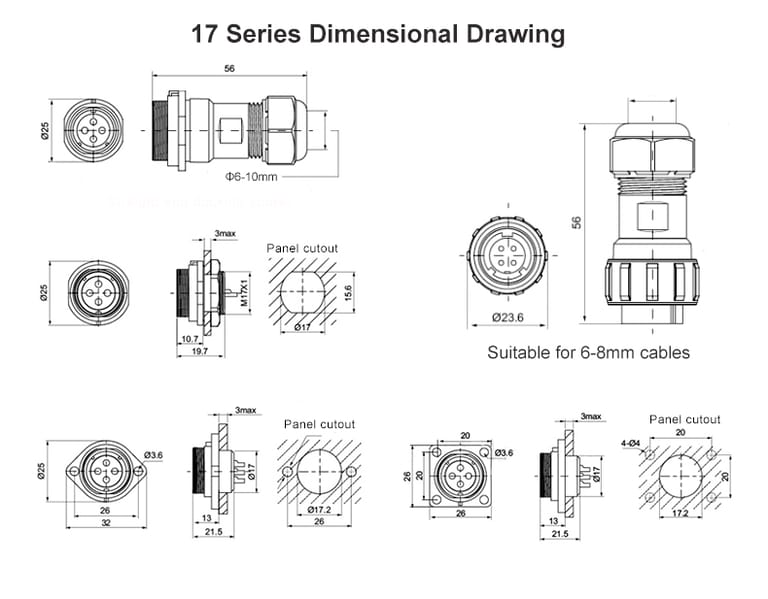

3.Size
4.color
Blue-black

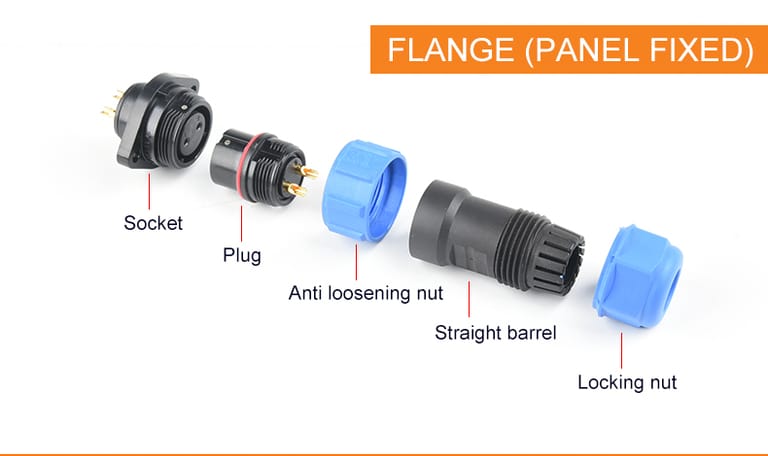

5. Product disassembly
6.Product Information
wiring method | welding |
connection method | threaded connection |
Contact material | Copper (gold-plated) |
Number of insertions | >500 times |
temperature range | -25℃~+85℃ |
insulator | PA66 reinforced nylon with high temperature resistance of 200 ℃ |
housing material | Thermoplastic PA6 |
Series Core Features:
Two-Hole Flange Fixing Structure: Utilizes a symmetrical two-mounting-hole design, achieving secure panel fixation via two bolts, providing excellent anti-vibration and anti-torsion capabilities.
High-Strength Mounting Method: Requires two symmetrical mounting holes in the panel; dual-point mechanical fixation ensures connector stability under adverse working conditions.
Effective Single-End Sealing Protection:Silicone sealing ring achieves IP68 protection rating, reliably preventing liquids and dust from entering the equipment interior.
Permanent Fixed Design:Developed specifically for static installation scenarios; position is fixed after installation, ensuring lasting stable electrical connection performance.
Complete Specification Sequence: SP13 supports 2-9 core applications; SP17 expands to 2-10 cores; SP21 provides the most comprehensive 1-15 cores and various special model configurations.
Materials and Manufacturing Process:
Housing uses high-strength PA66/PA6 engineering plastic, possessing excellent mechanical strength and environmental resistance.
Contacts are made of gold-plated copper, guaranteeing excellent conductivity and oxidation resistance.
Insulating material uses high-temperature resistant (200°C) reinforced nylon, ensuring electrical safety in high-temperature environments.
Environmental Adaptability:
Operating temperature range -25°C ~ 85°C,suitable for various industrial environmental temperature requirements.
Mating cycle life exceeds 500 times, guaranteeing long-term use reliability.
The two-hole flange structure is particularly suitable for applications with mechanical vibration and shock.
Connection Reliability:
The full series uses welded terminations, providing permanent and reliable electrical connections.
The threaded connection structure ensures the stability of the mechanical connection.
The symmetrical installation design effectively disperses mechanical stress, enhancing overall structural strength.
Typical Application Fields:
Suitable for industrial occasions requiring high-strength fixed installation:
Heavy machinery electrical control panels
Power system distribution devices
Industrial automation control cabinets
Outdoor protected electrical equipment
Rail transit control systems
Product Core Advantages:
Two-hole flange structure provides ultra-strong installation stability.
Symmetrical fixing design effectively resists vibration and shock.
IP68 protection ensures equipment internal safety.
Multiple specification choices meet different application needs.
High-quality materials guarantee long-term use reliability.
