SD16/SD28 panel installation (16mm-28mm) waterproof aviation connector male plug and female socket 3-pin~24 pin cable plug socket IP68
Multiple core options available
HK$16.52HK$12.39
1.Model Selection
SD16/SD20/SD28 three models to choose from
2.Model details
Product Model | Number of product cores(pin) |
SD16 | 2/3/4/5/6/7/8/9 |
SD20 | 1/2/3//4/5/6/7/8/9/10/12/14 |
SD28 | 2/3/4/5/6/7/8/9/10/12/14/16/19/22/24/26 |
The main difference between the 3 specifications is the size of the sealing wire, and the corresponding product can be selected according to the wire specifications.

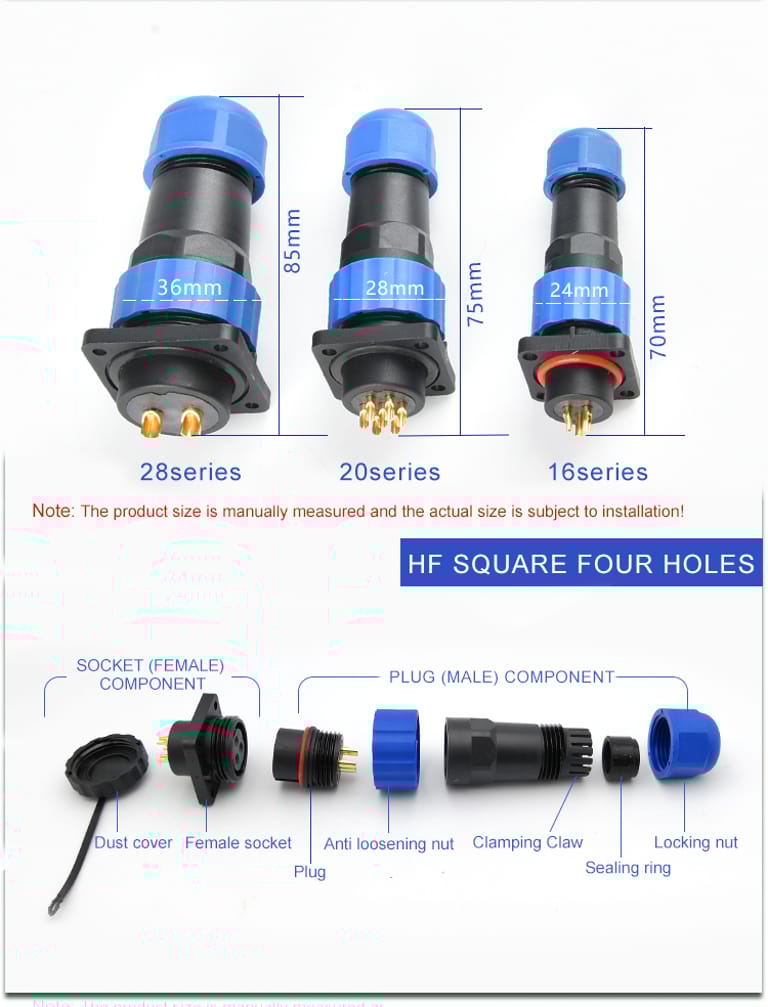

3.Size
4.color
Blue-black
5. Product disassembly
6.Product Information
wiring method | welding |
connection method | threaded connection |
Contact material | Copper (gold-plated) |
Number of insertions | >500 times |
temperature range | -25℃~+85℃ |
insulator | Thermoplastic PPS resistant to high temperature of 260 ° C |
housing material | Thermoplastic PA66, PA6 |
The installation method of the rear nut is easy to operate, and the connection is firm and reliable
All series of gold-plated contact treatment enhances conductivity and extends service life
Multi core flexible configuration to meet various application needs from simple to complex
Fast delivery capability to ensure timely completion of project progress
Improve the after-sales service system and provide technical consultation
These connectors provide secure and reliable connections in harsh environments, making them usable even in dusty and wet conditions.
Safety: Every connector is tested before shipment.
