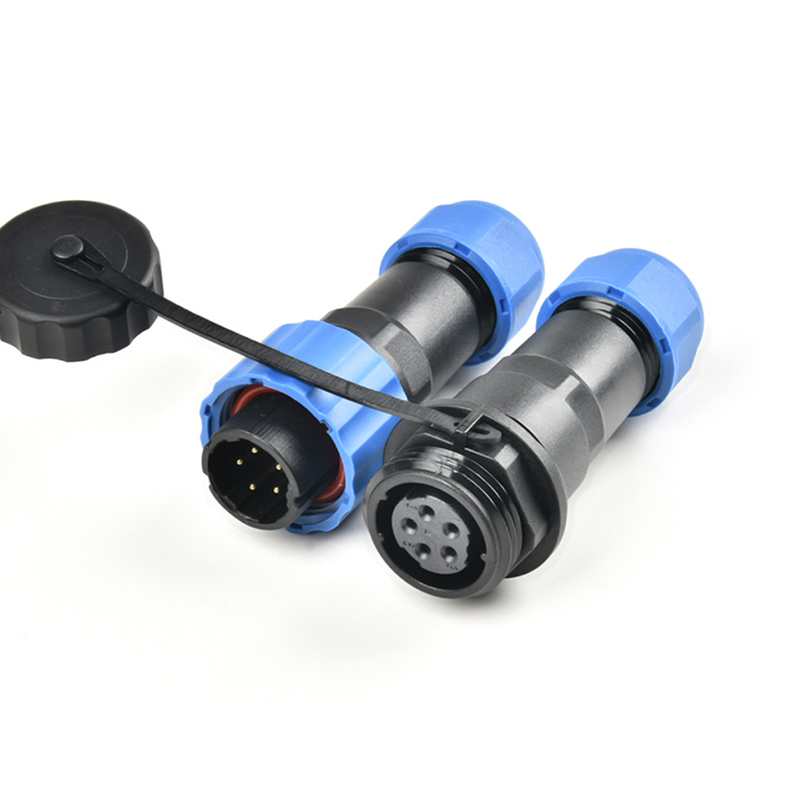

SD13-6P wire connector SD16-8p waterproof male and female plug SD28-14p-16p power signal transmission plug male and female mating style
SD13-6p wire connector SD28 multi pin male female docking power plug
$1.10$1.00
1.Product Introduction
All SD wire waterproof connectors are soldered to make the wire connection more secure. The models include SD13/SD16/SD/20/SD28. Each model has a threading diameter of 3-6mm for SD13, 6-8mm for SD16, 8-12mm for SD20, and 12-16mm for SD28. The corresponding number of pins is 1P-2P-3P-4P-5P-6P-7P for SD13, 2P-3P-4P-5P-6P-7P-8P-9P for SD16, 1P-2P-3P-4P-6P-7P-8P-9P-10P-12P-12P-14P for SD20, and 2P-3P-4P-5P-6P-7P-8P-9P-10P-12P-12P-12P for SD28. 14P-16P-19P-22P-24P-26P, to meet various wiring needs. If a wiring harness needs to be configured, we can also provide wiring harness processing for customers. We can process the length and length of the wiring harness according to customer needs to meet various customization requirements
2.Model details
Product Model | Number of product cores(pin) |
SD13 | 1p-2p-3p-4p-5p-6p-7p |
SD16 | 2p-3p-4p-5p-6p-7p-8p-9p |
SD20 | 1p-2p-3p-4p-5p-6p-7p-8p-9p-10p-12p-14p |
SD28 | 2p-3p-4p-5p-6p-7p-8p-9p-10p-12p-14p-16p-19p-22p-24p-26p |
The main difference between the 4 specifications is the size of the sealing wire, and the corresponding product can be selected according to the wire specifications.

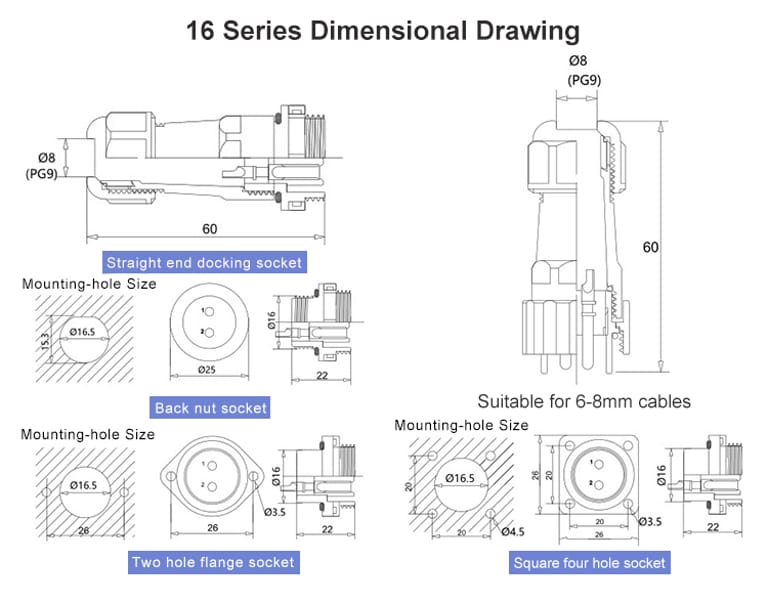

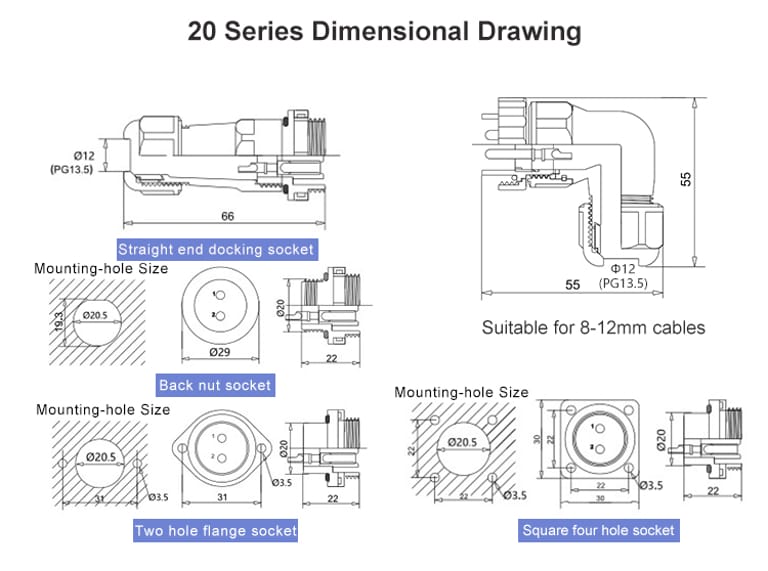

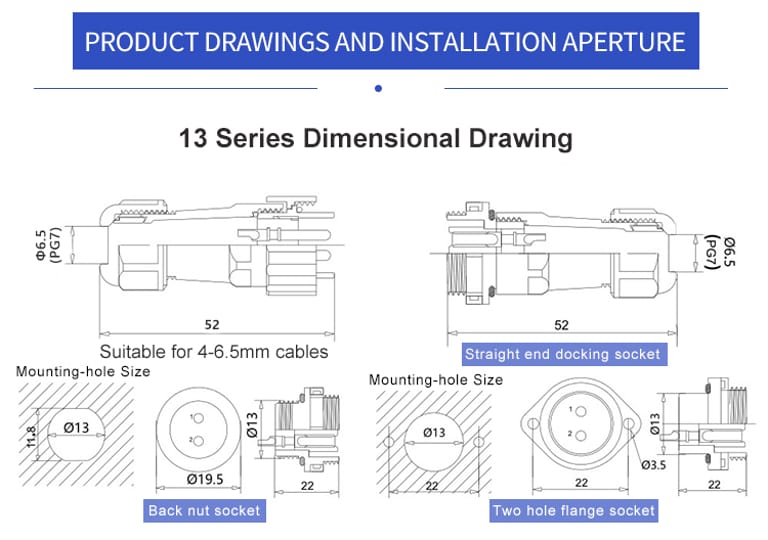

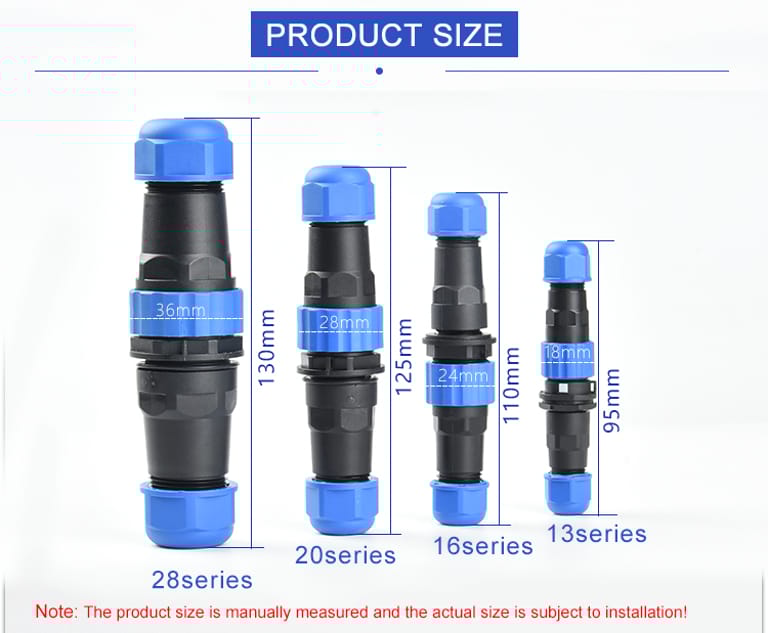

3.Size
4.color
Blue-black

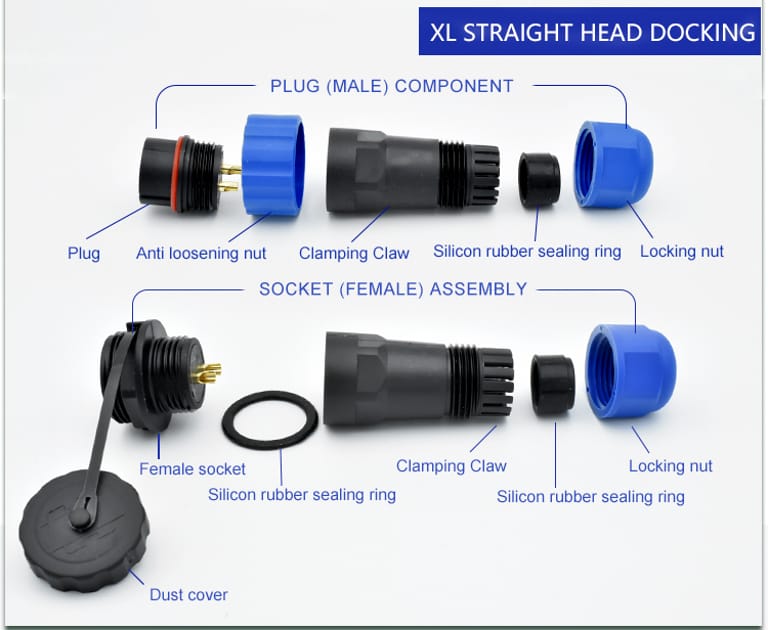

5. Product disassembly
6.Product Information
wiring method | Electric soldering iron welding |
connection method | threaded connection |
Contact material | Copper (gold-plated) |
Number of insertions | >500 times |
temperature range | -30℃~+95℃ |
insulator | Thermoplastic PPS resistant to high temperature of 260 ° C |
housing material | Thermoplastic PA66, |
Product Features:
Fully movable design, supports position adjustment during operation, offering flexible and convenient operation
Double-ended IP68 waterproofing, high-quality silicone sealing rings provide comprehensive protection
Fully enclosed structure, no exposed conductive parts, ensuring safety and reliability
High-temperature resistant (260°C) PPS insulating material, adaptable to harsh working environments
Gold-plated copper contacts, excellent conductivity and strong oxidation resistance
Application Scenarios:
This series of products is widely suitable for various occasions requiring mobile connections, such as mobile detection equipment, industrial robotic arms, precision measuring instruments, monitoring devices, and test platforms. Its excellent protection performance and flexible mobility make it an ideal choice in the field of industrial automation.
