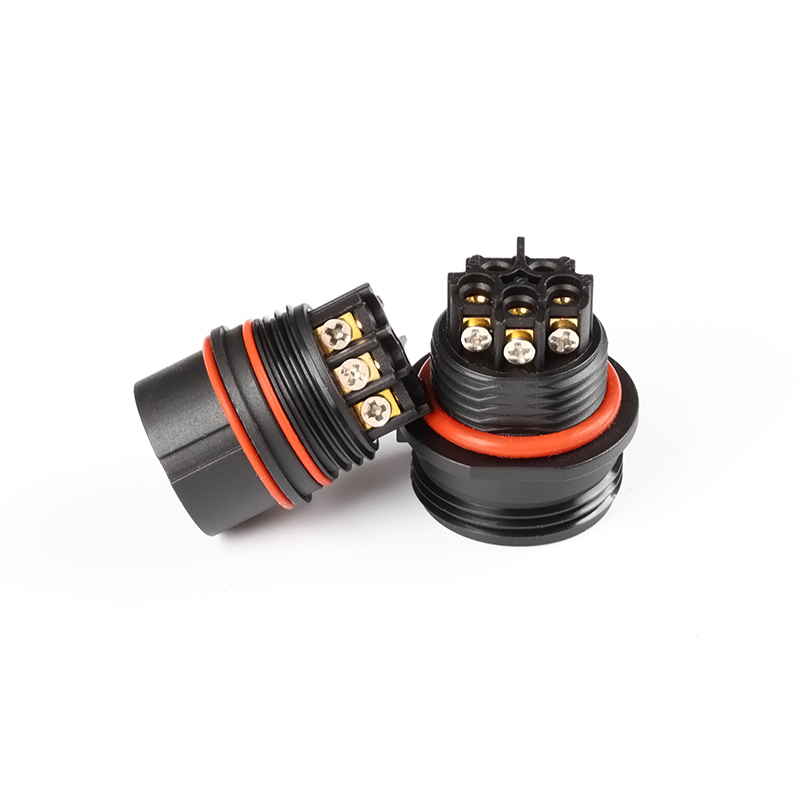

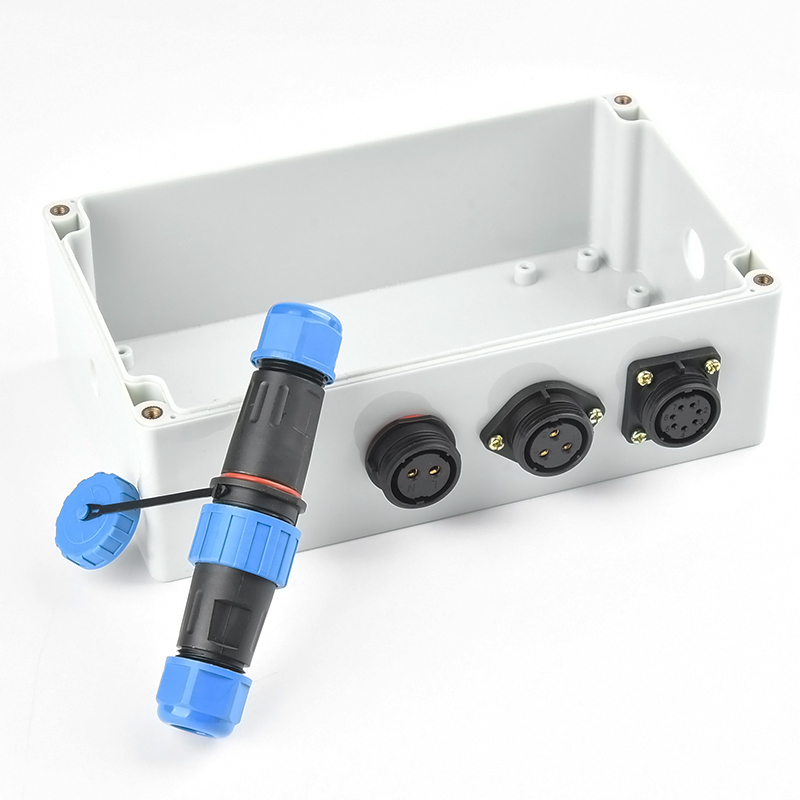

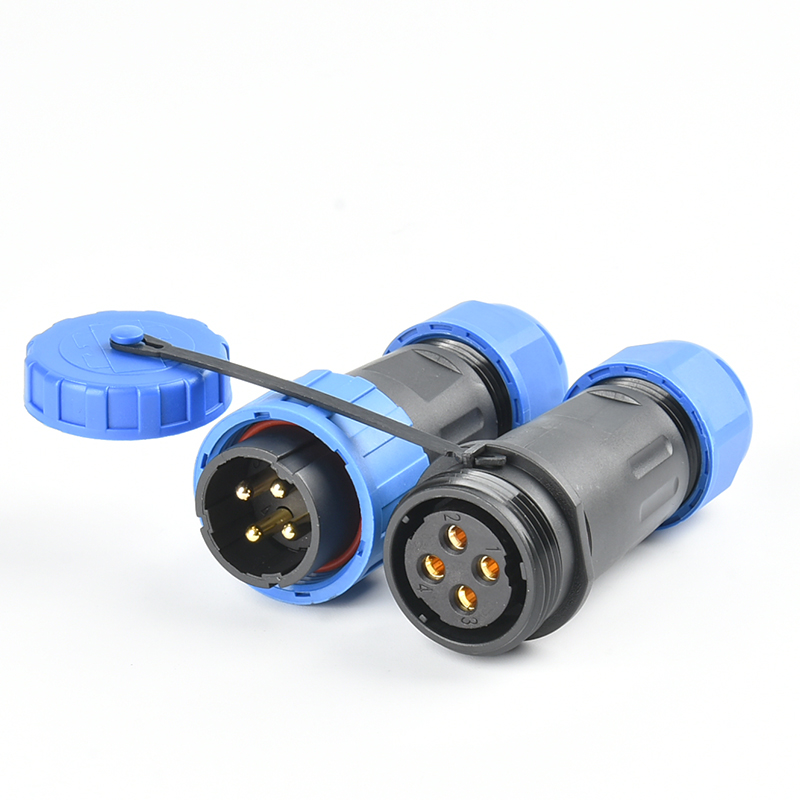

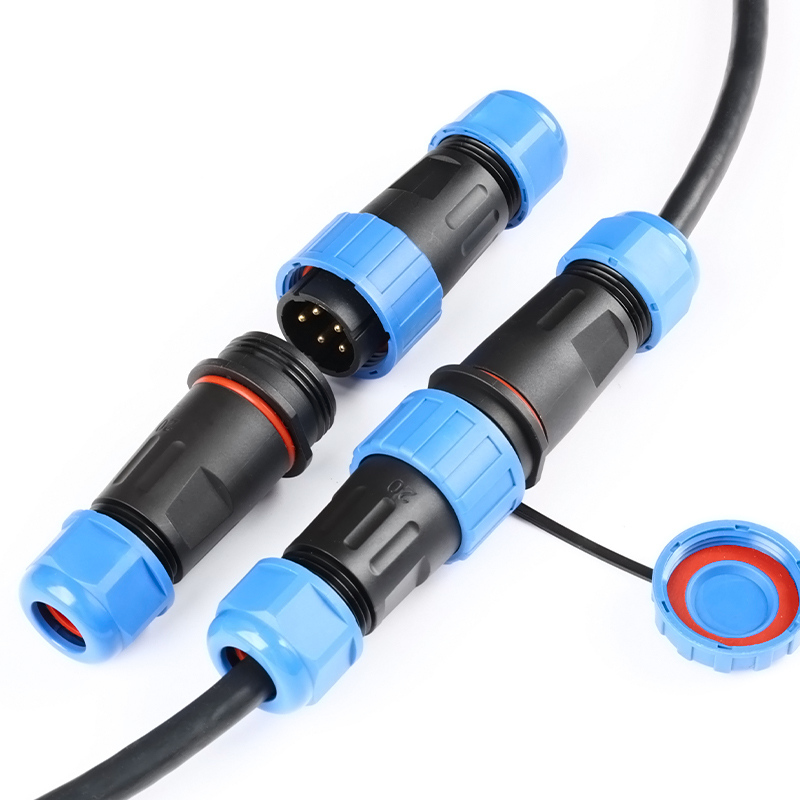

LD12--16-20-32 screw crimping 2pin/3piket IP68, wire connector, lockable and movable, female head and male seat
Multiple core options available
$2.00$1.00
1.Model Selection
LD models include LD12/LD16/LD20/LD24/LD28/LD32, all of which are screw crimped male and female plugs. LD12 has a 2P-3P wiring range of 3-6mm diameter, LD16 has a 2P-3P-4P-5P wiring range of 5-8mm, LD20 has a 2P-3P-4P-5P-6P-7P-8P-9P wiring range of 6-12mm, LD24 has a 2P-3P-4P-5P-6P-7P-8P-9P-10P-12P-12P wiring range of 10-14mm, LD28 has a 2P-3P-4P-5-P-6P-7P-9P-10P-12P-12P-14P wiring range of 12-16mm, LD32 has a 3P-4P-5P-7P-9P-11P-11P-12P-12P-16P wiring range of 14-16P. 20mm, each model can reach a voltage of 450V and a current of 3A-63A, meeting installation requirements,
2.Model details
Product Model | Number of product cores(pin) |
|---|---|
LD12 | 2p/5A-3p/5A |
LD16 | 2p/25A-3p/10A-4p/5A-5p/5A |
LD20 | 2p/25A-3p/25A-4p/25A-5p/10A-6p/5A-7p/5A-8p/5A-9p/5A |
LD24 | 2P/45A-3P/32A-4P/32A-5P/25A-6P/10A-7P/10A-8P/5A-9P/5A-10P/5A-12P/5A |
LD28 | 2P/45A-3P/45A-4P/45A-5P/25A-6P/25A-7P/25A-9P/10A-10P/10A-12P/10A-14P/5A |
LD32 | 3P/45A-4P/45A-5P/45A-7P/32A-9P/25A-11P/10A |
The main difference between the 6 specifications is the size of the sealing wire, and the corresponding product can be selected according to the wire specifications.

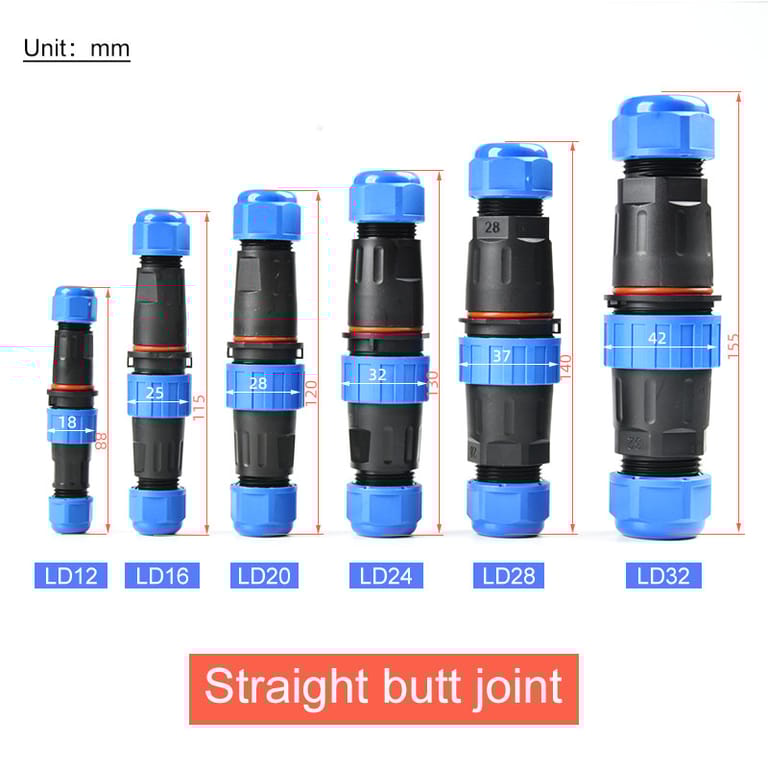

3.Size
4.color
Blue black (customizable all black)

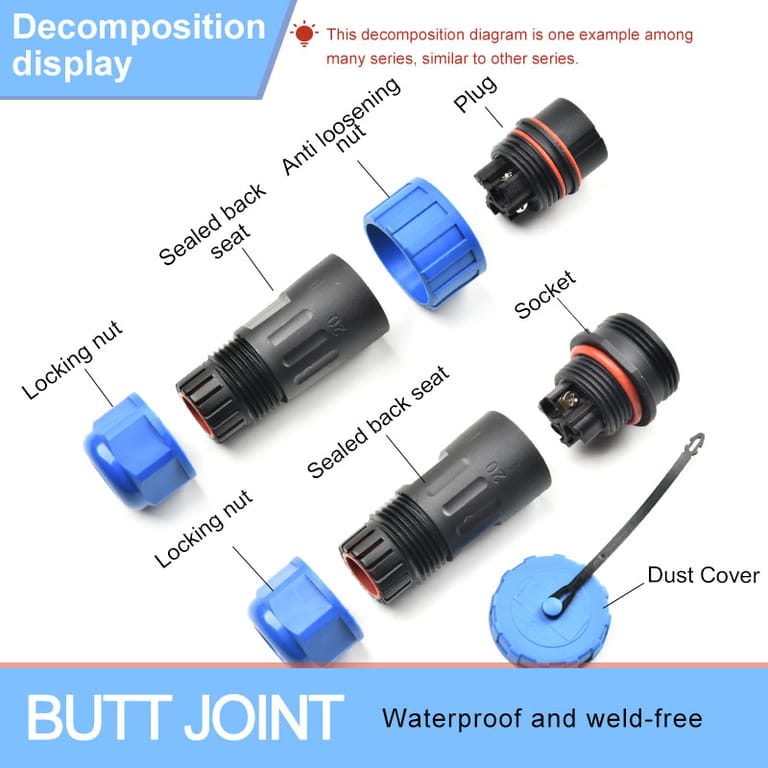

5. Product disassembly
6.Product Information
wiring method | screw crimping |
|---|---|
connection method | threaded connection |
Contact material | Copper (plated with imitation gold) |
Number of insertions | >500 times |
temperature range | -30℃~+95℃ |
housing material | Nylon PA6 |
insulator | PA6 nylon can withstand high temperatures up to 200 ° C |
