LD12-16-32 2-pin aviation connector plug and socket, waterproof power connector, panel installation 12-32mm, waterproof IP68, LED light cable connector
Multiple core options available
$2.00$1.00
1.Model Selection
There are a total of 6 models of LD12/16/20/24/28/32, all of which are screw connected. The numbers also represent the panel opening size. For example, LD12 means that the panel can be installed with a 12mm hole, and the wiring specifications of each product are also different. LD12 wiring diameter is 3-6mm/LD16 wiring diameter is 5-8mm/LD20 wiring diameter is 7-12mm/LD24 wiring diameter is 10-14mm/LD28 wiring diameter is 12-16mm/LD32 wiring diameter is 14-20mm, and the number of cores is 2p-16p to choose from
2.Model details
Product Model | Number of product cores(pin) |
LD12 | 2P-3P |
LD16 | 2P-3P-4P-5P |
LD20 | 2P-3P-4P-5P-6P-7P-8P-9P |
LD24 | 2P-3P-4P-5P-6-P7-8P-9P-10P-12P |
LD28 | 2P-3P-4P-5P-6P-7P-9P-10P-12P-14P |
LD32 | 3P-4P-5P-7P-9P-11P-12P-14P-16P |
The main difference between the 6 specifications is the size of the sealing wire, and the corresponding product can be selected according to the wire specifications.

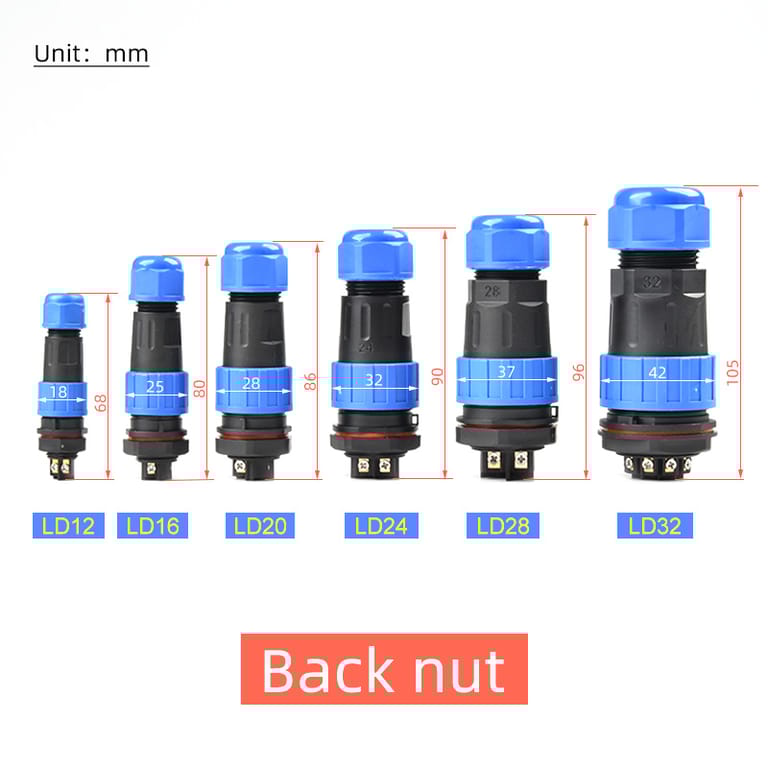

3.Size
4.color
Blue black (customizable all black)

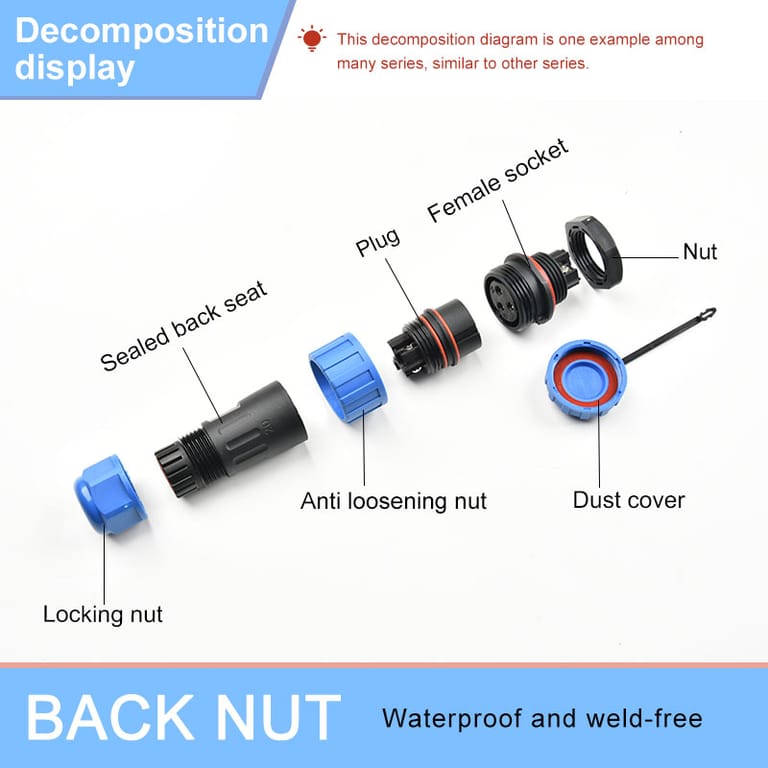

5. Product disassembly
6.Product Information
wiring method | screw crimping |
|---|---|
connection method | threaded connection |
Contact material | Copper (plated with imitation gold) |
Number of insertions | >500 times |
temperature range | -25℃~+85℃ |
housing material | Nylon PA6 |
insulator | PA6 nylon can withstand high temperatures up to 200 ° C |
LD Series Waterproof Aviation Plug and Socket Rear Nut Panel Mount Series
LD series rear nut panel fixed socket, IP68 protection, supports 2-11 cores. Nylon shell, gold-plated contacts, high temperature resistance of 200 ℃. Suitable for scenarios such as new energy and industrial control, with stable and vibration resistant installation. 2000 sets in stock, supporting fast delivery.
Product Overview
The LD Series Waterproof Aviation Plug and Socket Rear Nut Panel Mount Series is designed for high-reliability industrial equipment, covering seven models: LD12/16/20/24/28/32. The product adopts a rear nut panel mounting method, achieving secure installation through a threaded locking structure. It features an IP68 protection rating and an operating temperature range of -25℃ to 85℃. The full series uses nylon PA housing and high-temperature resistant insulating materials, with contacts plated with gold-imitation finish. It supports screw crimping termination and is suitable for scenarios requiring long-term fixed connections, such as new energy distribution cabinets, industrial control boxes, and power equipment.
Mechanical and Materials:
Housing Material: Reinforced nylon PA (impact-resistant, chemically corrosion-resistant)
Insulator: PA6 nylon, high-temperature resistant up to 200℃
Contacts: Copper with gold-imitation plating (wear-resistant, oxidation-resistant)
Protection Rating: IP68
Installation Method: Rear nut panel mount (requires panel cutout)
Dynamic Performance:
Mating Cycles: >500 times
Operating Temperature: -25℃ to 85℃
Application Fields
New Energy Distribution: Photovoltaic inverter interfaces, energy storage system junction boxes
Industrial Control: PLC control cabinets, motor drives, sensor hub boxes
Power Equipment: Distribution boxes, transformer interfaces, power distribution units
Rail Transportation: Vehicle control boxes, signal equipment cabinets
Marine Engineering: Marine control panels, offshore platform electrical boxes
